CLEARBRAID Standard Wall PVC Hose
A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications.
3A - The PVC compound complies with the criteria in 3-A Sanitary Standards for Multiple-Use Plastic Materials, number 20.
FDA - The PVC ingredients used are sanctioned for food contact use under CFR title 21, parts 170-199.
NSF - This hose is certified under NSF/ANSI standard 51: Food Equipment Materials.
RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
UL - The clear PVC plastic material is certified for Flame Class HB under the Plastics - Components category by UL with a minimum thickness of 0.8 mm.
USDA - The PVC hose has been found chemically acceptable for use in slaughtering, processing, transporting, or storage areas in direct contact with meat or poultry food product prepared under Federal Inspection.
USP - The PVC compound has been tested and meets the requirements of the USP guidelines, for Class VI Plastics.
Construction
Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification.
Features
Constructed with non-toxic compounds.
NSF-51 and NSF-61 certified material.
Crystal clear - allows visual confirmation of product flow.
Longitudinally-reinforced to reduce elongation under pressure.
Light weight.
Metric sizes available.
Self-extinguishing.
Non-marking.
Silicone-free.
Non-conductive.
One-piece lengths.
Resistant to chemicals.
Compound hardness 73 ± 3 Shore "A".
Applications
Food & beverage dispensing.
Deionized water.
Liquid food products.
Air and water lines.
Powdered food products.
Packaging machines.
Potable water transfer.
Air breathing lines.
Pneumatic lines.
Specifications
· Temperature Range – 25 to 150 ºF (-4 to 65°C)
· Nominal ID Size (Inches/mm) – 3/4” - (19.0) & 1” – (25.4)
· Nominal OD Size (Inches/mm) – 3/4” - 1.031” (26.2) & 1” – 1.30” (33)
· Max. Working Pressure at 70°F (20°C) – 3/4” -150 PSI & 1” – 125PSI
Max. Working Pressure at 122°F (50°C) – 3/4” -85 PSI & 1” – 85PSI
CLEARBRAID Standard Wall PVC Hose
A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications.
3A - The PVC compound complies with the criteria in 3-A Sanitary Standards for Multiple-Use Plastic Materials, number 20.
FDA - The PVC ingredients used are sanctioned for food contact use under CFR title 21, parts 170-199.
NSF - This hose is certified under NSF/ANSI standard 51: Food Equipment Materials.
RoHS - The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
UL - The clear PVC plastic material is certified for Flame Class HB under the Plastics - Components category by UL with a minimum thickness of 0.8 mm.
USDA - The PVC hose has been found chemically acceptable for use in slaughtering, processing, transporting, or storage areas in direct contact with meat or poultry food product prepared under Federal Inspection.
USP - The PVC compound has been tested and meets the requirements of the USP guidelines, for Class VI Plastics.
Construction
Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification.
Features
Constructed with non-toxic compounds.
NSF-51 and NSF-61 certified material.
Crystal clear - allows visual confirmation of product flow.
Longitudinally-reinforced to reduce elongation under pressure.
Light weight.
Metric sizes available.
Self-extinguishing.
Non-marking.
Silicone-free.
Non-conductive.
One-piece lengths.
Resistant to chemicals.
Compound hardness 73 ± 3 Shore "A".
Applications
Food & beverage dispensing.
Deionized water.
Liquid food products.
Air and water lines.
Powdered food products.
Packaging machines.
Potable water transfer.
Air breathing lines.
Pneumatic lines.
Specifications
· Temperature Range – 25 to 150 ºF (-4 to 65°C)
· Nominal ID Size (Inches/mm) – 3/4” - (19.0) & 1” – (25.4)
· Nominal OD Size (Inches/mm) – 3/4” - 1.031” (26.2) & 1” – 1.30” (33)
· Max. Working Pressure at 70°F (20°C) – 3/4” -150 PSI & 1” – 125PSI
Max. Working Pressure at 122°F (50°C) – 3/4” -85 PSI & 1” – 85PSI
|

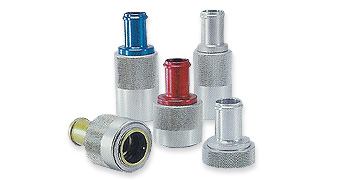

Fill Cap Assembly
